Function Line Mono

Sat, 2011-10-22 13:50 — tomg
SKU: Function Line Mono

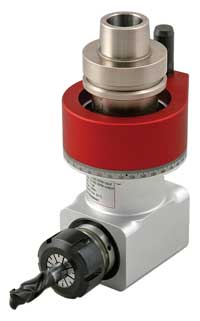

Mono – Single Spindle Aggregate Head

Aggregate heads are used for:

  • Speeding operations by combining tasks
  • Reducing the number of tool changes needed
  • Creating custom profiles and mortises
  • Faster sizing and grooving (saw blade)

Mono output aggregates are an affordable way to add 4th axis capability to your CNC router. Perform routing, boring, mortising, and sawing operations faster to increase profits. Choose form a wide variety of spindle outputs.

Function Line aggregates are grease lubricated for standard duty operation. They provide the greatest number of configurations and application specific tool output options to increase CNC router productivity.



Output Options:
  Application   Boring, routing, and sawing
  Spindle Speed Max.   10,000 RPM
  Tool Speed Max.   15,000 RPM
  Rotation   aggregate can be rotated 360°
  Gear Ratio   1:1.48
  Spindle Direction   Same
  Maximum Torque   15 ft. lbs.
  Maximum Temp.   185° F
  Outputs Available   M5, R6, S1, S2

 M5 - ER 25 Collet

 R6 - ER 32 Collet

S1 - Saw Blade 30mm x 45mm

S2 - Saw Blade 30mm x 52mm
