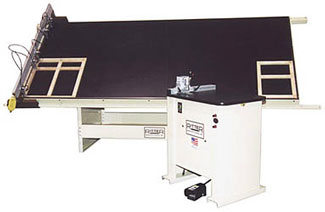

Ritter R200 Face Frame Assembly System

SKU: R200

Designed for pocket joinery face frame construction. The system provides the most efficient and economical method of frame joinery. Flush and tight joint construction is provided on all types of wood. The elimination of dowel boring, dowel and glue insertion, clamping time and joint misalignment provides up to 50% reduction in frame construction. The ability to disassemble a frame and reposition a joint without the loss of material adds to the systems productivity. The design of the pocket borer eliminates the need for glue to be applied to the joint. \r\nSTANDARD FEATURES: \r\n\r\nPocket screw assembly technology \r\n60" x 144" easel area \r\n1" thick table surface with high pressure laminate surface \r\nHold down beam with (5) clamp cylinders \r\nLeft & right hand squaring bars \r\nBottom squaring fence \r\nSingle spindle pocket borer \r\n1.5 h.p. spindle drive motor \r\nFoot actuated boring cycle \r\n24" x 30" work table area \r\nMachine weight: 2,200 lbs\r\n\r\n
