Features:
• Makes setting correct torque fast & easy
• Extends life of cutting tools, collets, & nuts
Just twist handle to set dial to desired torque. Tighten nut until wrench "clicks". Preset, fixed torque wrenches are also available.

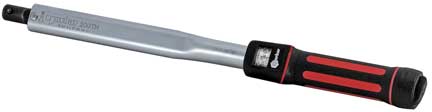

Adjustable Torque Wrenches
| Part No. | Torque Range |
Length
|
Weight
|
Spigot
|
| 60 TH | 5-45 ft/lbs |
11.5"
|
1.2 lbs.
|
16mm round
|
| 200 TH | 30-150 ft/lbs |
16.5"
|
1.75 lbs.
|
16mm round
|
| 300 TH | 45-228 ft/lbs |
21.5"
|
2.5 lbs.
|
16mm round
|
Collet Keys, Retention Knob Drives, and Fixed Head Drives
|
|
 |
 |
 |
 |
 |
 |
 |
| ER Castle | ER Slotted | ER32 Slotted | Hex Type | TG Hook | DNA 16 | Pull Stud | Fixed Head |
Collet Keys for Torque Wrench
*Recommended torque range is 80-90% of maximum torque.
|
Part No.
|
Collet Nut Size
|
Nut Type
|
Max. Torque*
|
| 04576 |
ER 11 Mini
|
MIni
|
14 ft/lbs.
|
| 04577 |
ER 16 Mini
|
MIni
|
22 ft/lbs.
|
| 04578 |
ER 20 Mini
|
MIni
|
25 ft/lbs.
|
| 04587 |
ER 25 Mini
|
MIni
|
29 ft/lbs.
|
| 04580-16 |
ER 16 Slotted
|
Slotted
|
50 ft/lbs.
|
| 04601-16 |
ER 16 Hex
|
Hex
|
50 ft/lbs.
|
| 04580-20 |
ER 20 Slotted
|
Slotted
|
75 ft/lbs.
|
| 04602-20 |
ER 20 Hex
|
Hex
|
75 ft/lbs.
|
| 04603-25 |
ER 25 Slotted
|
Slotted
|
95 ft/lbs.
|
| 04604-32 |
ER 32 Slotted
|
Slotted
|
125 ft/lbs.
|
| 04605-40 |
ER 40 Slotted
|
Slotted
|
140 ft/lbs.
|
| 03690-25 |
SYOZ 25/TG 100
|
Hook
|
100 ft/lbs.
|
| 04018-TWA |
TG 75 Slotted
|
Hook
|
100 ft/lbs.
|
| DNA16-TWA |
DNA 16
|
Slotted
|
50 ft/lbs.
|
| 04588-R |
ER 32 Slotted
|
Slotted / Closed
|
125 ft/lbs.
|
| SD-TWA |
SYOZ-20
|
Hook
|
45 ft/lbs.
|
Retention Knob Drives and Fixed Head Square Drives
|
Part No.
|
Taper or Holder
|
Flats
|
Drive
|
Max. Torque*
|
|
PSS - 30BT
|
BT 30 Taper Retention Knob
|
0.535"
|
3/8"
|
40 ft/lbs.
|
|
PSS - 30ISO
|
ISO 30 Taper Retention Knob
|
0.535"
|
3/8"
|
40 ft/lbs.
|
|
PSS - 40
|
All 40 Taper Retention Knobs
|
0.750"
|
3/8"
|
85 ft/lbs.
|
|
PSS - 50
|
BT 50 Taper Retention Knob
|
1.187"
|
1/2"
|
110 ft/lbs.
|
|
PSSC - 50
|
CAT 50 Taper Retention Knob
|
1.250"
|
1/2"
|
110 ft/lbs.
|
|
Part No.
|
Description
|
Drive
|
|
29828
|
3/8" Fixed Head Square Drive
|
3/8"
|
|
29827
|
1/2" Fixed Head Square Drive
|
1/2"
|
