Omal Inco 1550

SKU: Omal INCO 1550

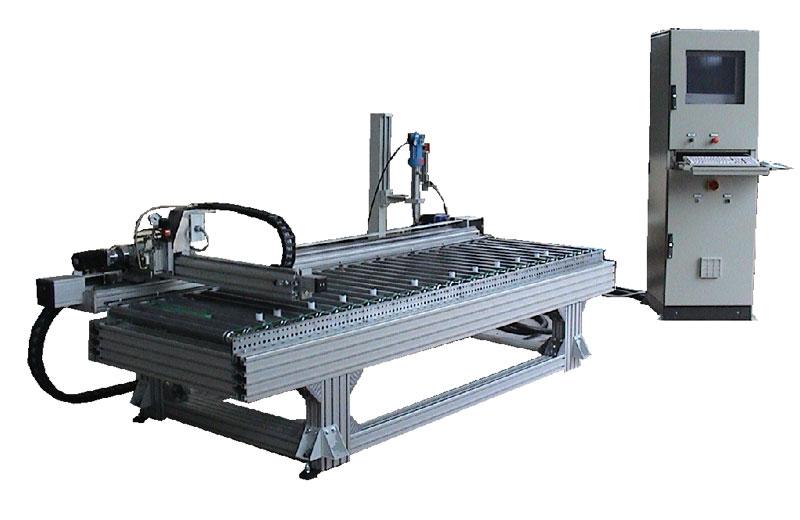

The OMAL INCO 1550 is a high speed CNC gluing machine for end panels. It can have a stationary table or be incorporated into a production line with conveyorization. It has been designed to rapidly and cleanly insert exact dosage amounts of glue into assembly holes for end panels already equipped with hardware (drawer slides, hinge plates, etc). The user friendly software interface (similar to Genesis Evolution used by Busellato Jet CNC machines) makes the machine extremely versatile. Programs can be written parametrically, can include IF/THEN statements, and are generated using graphical icons (drill, glue, dowel check boxes). The machine can also be equipped with laser identification or bar coding for program recall and part identification.

Technical Specifications

  • Dripless high pressue glue system
  • 5 gallon pail glue pump system with washing tank
  • Glue viscosity range: 1500-4000 cps*
  • Pulse or continuous mode
  • Rapid X and Y axis control, 60 meters/minute
  • 2 axis NC
  • Pneumatic up/down to clear hinges, slides, etc
