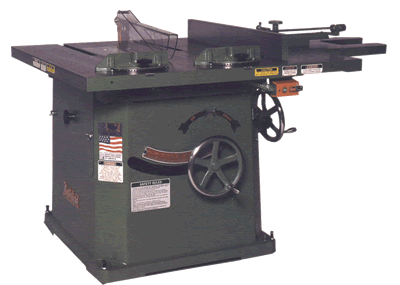

northfield #4 saw

SKU: Nor-#4

Wide Choice of Models ---Northfield Tilting Arbor Variety Saws are available in four different models, each of which is designed for a variety of uses. Each model can accommodate saw blades from 14" to 18". The saww arbor can be tilted from 0 degrees to 45 degrees through a conveniently located hand wheel. A vertical saw adjustment of 4" is standard. The stock capacity for each machine is listed in the specifications.

Each Machine is Electronically Balanced ---Each Northfield machine is carefully tested with modern vibration analyzing equipment. Even conditions hidden frm view which might interfere with the smooth, long life of the machine, are detected and corrected.

Precision Tables ---All tables on Northfield Tilting Arbor Variety Saws, whether stationary or rolling, are carefully seasoned, heavily ribbed and precision planed and polished to maintain accuracy. A graduated scale is marked on the top for ripping widths. Dovetailed slots are provided for the sliding gauges.

The Gauges ---Two sliding, combination, cut-off or miter gauges are provided with dovetail slide strips permitting them to be drawn clear of the table without falling. An adjustable rack and pinion type rip fence is furnished.



Specifications

**Now Available: Single Phase Arbor Motors
These motors are available for new machines an retrofitting applications.
5 HP 1 phase motors pull 22 full load Amps.



Saw Capacity 14", 16", 18"
14" Saw Projects 3"
14" Saw Projects of 45 degree Tilt# 2-1/4"
16" Saw Projects 4"
16" Saw Projects of 45 degree Tilt# 3"
18" Saw Projects 5"
18" Saw Projects of 45 degree Tilt# 3-5/8"
Saw Arbor Tilts 0 degrees to 45 degrees
Vertical Saw Adjustment 4"
Arbor Speed (RPM) 3600
Motor HP Std. (TEFC) 5
Optional Motor HP 7-1/2 - 10
Standard Arbor Diameter 1-1/8"
Optional Arbor Diameter 1", 1-1/4"
Dado Capacity with Thin Collar* 13/16"
Stationary Table Size 36" x 44"
Size of Rolling Table None
Complete Table Size 36" x 44"
Rip Capacity with Standard Rack & Pinion Type Fence 32"
Rack and Pinion Rip Fence Size 35" x 4-1/4"
Extended Tables Available with Rip Capacities (Optional Extras)

12"--44" Rip Capacity

24" w/legs--56" Rip Capacity

36" w/legs--68" Rip Capacity

12" (left)--21" Rip Capacity (left)

24" (left)--33" Rip Capacity (left)

Crosscut Capacity 32"
Dado Capacity of Table if Arbor Extension is Used 4"
Height of Table Above Floor 34"
Floor Space 44" x 56"
Net Weight 1680
Domestic Shipping Wt 1800
Export Shipping Wt 2000
Cubic Measure 67 cu. ft.
Voltages Available (3 Phase Only): 200-208, 230/460, 575. Please Specify
 #  Measured perpendicular to top of table from highest projection of blade.
##  Must use special Dado throat
 *  Optional:  Specify when ordering

Extras

12", 24" & 36" Cast Iron Table Extensions, Micrometer Adjust on R & P Fence, Tilting R & P Fence, 4" Screw-on Dado Extensions, Detachable Arbor Motor, Detachable Arbor Ends, Dado Throat Plate, Stock Stops for Miter Gauges, NEMA 12 Electrics with Fused Disconnect, NEMA 1 Electrics with Fused Disconnect, Thin Dado Collar 13/16" Dado Capacity on Std. Arbor.
